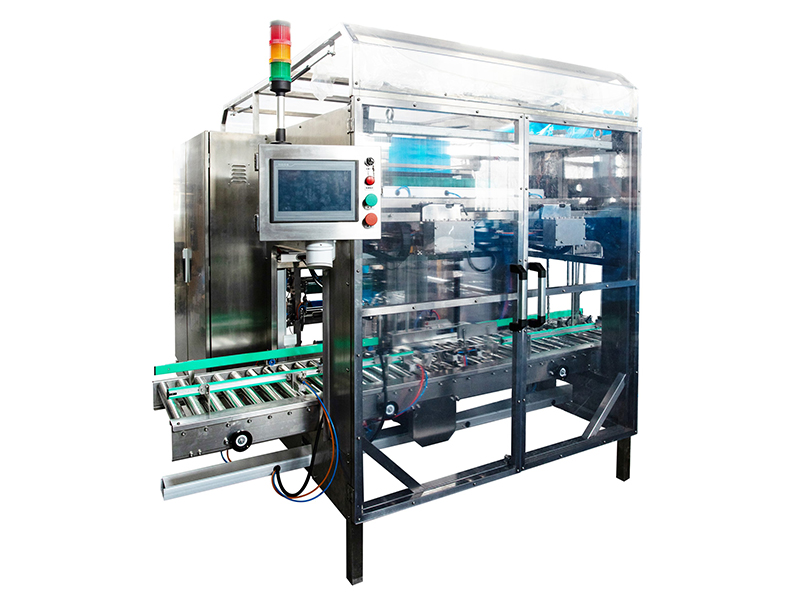

Bag Making & Inserting Machine

Margarine filling line (shortening filling line)

SPBM-600/10 bag making machine integrates mechanical and electrical, gas, servo technology, centralized control by Siemens PLC, man-machine interface (touch screen), user-friendly operation, can be preset bag making number, bag length, bag making speed, bag making heat sealing temperature, etc.

The equipment is widely used in food, chemical, brewing and other packaging fields. The product is stable and reliable, high automation level, simple and convenient operation. It is the advanced equipment in the domestic bagging line.

Technical parameters:

²  Bag-making width: 200 ~ 600mm (including M edge)

²  bag length: 100 ~ 1000mm

²  Bag-making and bagging speed: 10-12 bags/ min

²  unwinding diameter: maximum Φ500mm

²  bag type: 45° oblique bottom, straight bottom seal

²  bag positioning accuracy: ±1mm

²  the number of heat sealing knife: 45° oblique bottom sealing four groups, straight bottom sealing one group

²  Temperature control quantity: six ways

²  temperature control setting range: normal temperature ~ 200℃

²  the machine power: 10KW

²  the weight of the machine: about 1000kg

²  material: 304 stainless steel

Electric components configuration

Machine configuration and related parameters

A. Unwinding rack device:

²  two sets of parallel horizontal discharge mechanism

²  Transverse winding rod type manual rectifying machine

²  discharge control mode: floating vertical rod infrared photoelectric control given unwinding speed

²  Two sets of discharge shafts are light air swelling shafts

Unwinding traction device:

²  Structure: roller press friction type

²  drive: DC motor constant short control

²  Transmission: synchronous belt and synchronous belt wheel

²   control mode: digital circuit, infrared photoelectric synchronous control

45° oblique bottom sealing device

²  Structure: two pairs of 45° heat sealing copper knife palm type heat sealing

²  Working mode: Four sets of mini cylinders are used to press and heat seal two M edges

²  oblique bottom temperature control mode: PLC centralized control, PID regulation, thermocouple detection, solid state relay drive

²  the temperature setting range: normal temperature ~ 360℃

Straight bottom heat sealing device:

²  Structure: transverse copper knife pressed combined air pressure structure

²  drive: by the cylinder parallel movement

²  Number of bottom seals: 1 set

²  Length of bottom seal: 700mm

²  heat seal temperature control mode: PLC centralized control, PID regulation, thermocouple detection, solid state relay drive

²  the temperature setting range: normal temperature ~ 360℃

²  Temperature measuring point: the middle part of the electric heater

Bag-making length fixing device:

²  Structure: roller press friction type

 ²  Driver: full digital AC servo system

²  Transmission: synchronous belt and synchronous belt wheel

²  control mode: PLC centralized control, arbitrary length (100-1000mm) set automatic length positioning

Bag-making cutting device:

²  structure: serrated knife broken bag

²  drive: PLC centralized control, SMC cylinder program motion sawtooth knife cutting

Inside strap and flanging device:

²  structure: under blowing positive sleeve into the box side blowing guide, suction cup opening, cylinder flanging

²  bagging: servo motor control lifting mechanism will open after the bag to the box

²  Flanging: After the cylinder turns the upper mouth of the barrel bag into a box square, it falls on the outside of the box mouth and wraps the edge when bagging down

²  control mode: PLC centralized control, automatic program movement

Transfer table device

²  Structure: lifting transmission structure

²  Transmission mode: the conveyor roller is actively driven

²  drive motor acceleration and deceleration machine drive.

²  control mode: computer centralized control, Yaskawa frequency converter drive

²  station control mode: infrared photoelectric detection, pneumatic manipulator execution, computer centralized control.
