Margarine Tub Filling Line

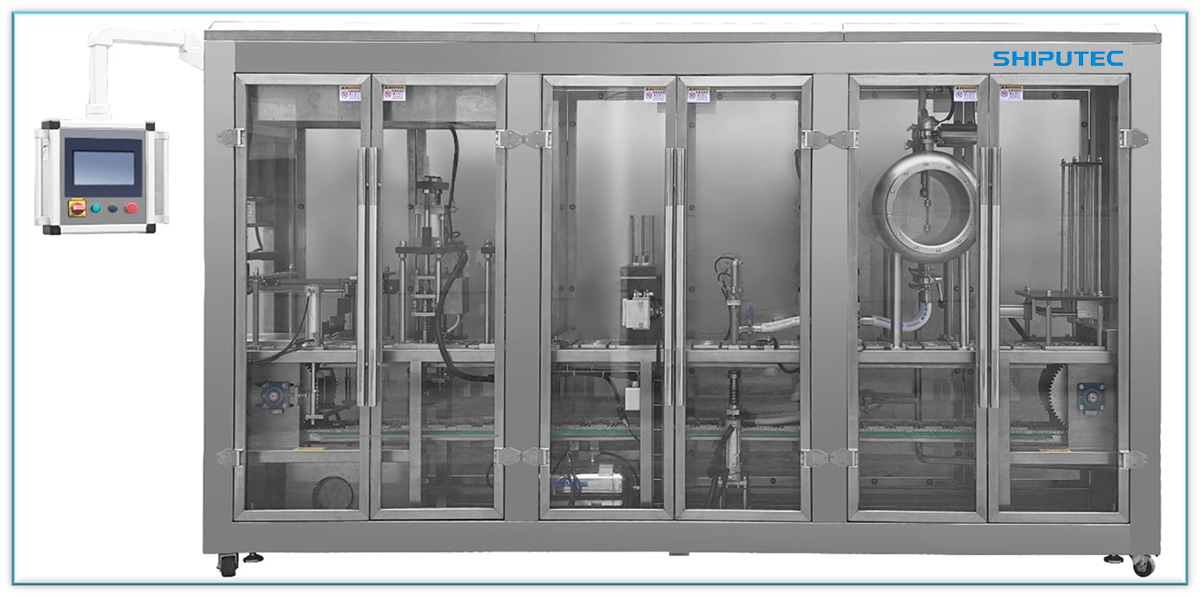

Equipment Photo
Description
This model of filling machine is suitable for filling and sealing of liquid, semi-liquid, paste, powder, granular and other materials.
Process flow: automatic tub dropping, automatic tub detection, automatic filling, liquid level control, bubble scraping, photoelectric tracking, foil paper feeding, lid feeding, rejection. And sanitary dust protection cover.
|
Technical Spec. |
|
|
Model |
SPTF-6 |
|
Production capacity |
4800-5000 tubs/hour |
|
Suitable volume |
10-500ml/tub |
|
Tub dimension |
to be customized |
|
Heating power |
- |
|
Motor power |
3kw |
|
Total power |
3-5kw |
|
Voltage |
380V/50Hz |
|
Compressed air consumption |
1.2m³/min. |
|
Compressed air pressure |
0.5-0.7MPa |
|
Overall dimension |
3800*1100*1750mm |
|
Electronic Configuration |
|
|
PLC: |
Siemens |
|
HMI |
Siemens |
|
Extended module |
Siemens |
|
Conveying servo motor |
Siemens |
|
Servo drive |
Siemens |
|
Filling servo motor |
Siemens |
|
Servo drive |
Siemens |
|
Output servo motor |
Siemens |
|
Servo drive |
Siemens |
|
Cylinder |
SMC |
|
Photoelectric sensor |
Panasonic |
|
Eye mark sensor |
Panasonic |
|
Switch |
Schneider |
|
Air breaker |
Schneider |
|
Intermediate relay |
Schneider |
|
Solid relay |
Omron |
|
CIP cleaning tank |
SUS304 |
|
Frame |
SUS304 |
Site Commissioning
