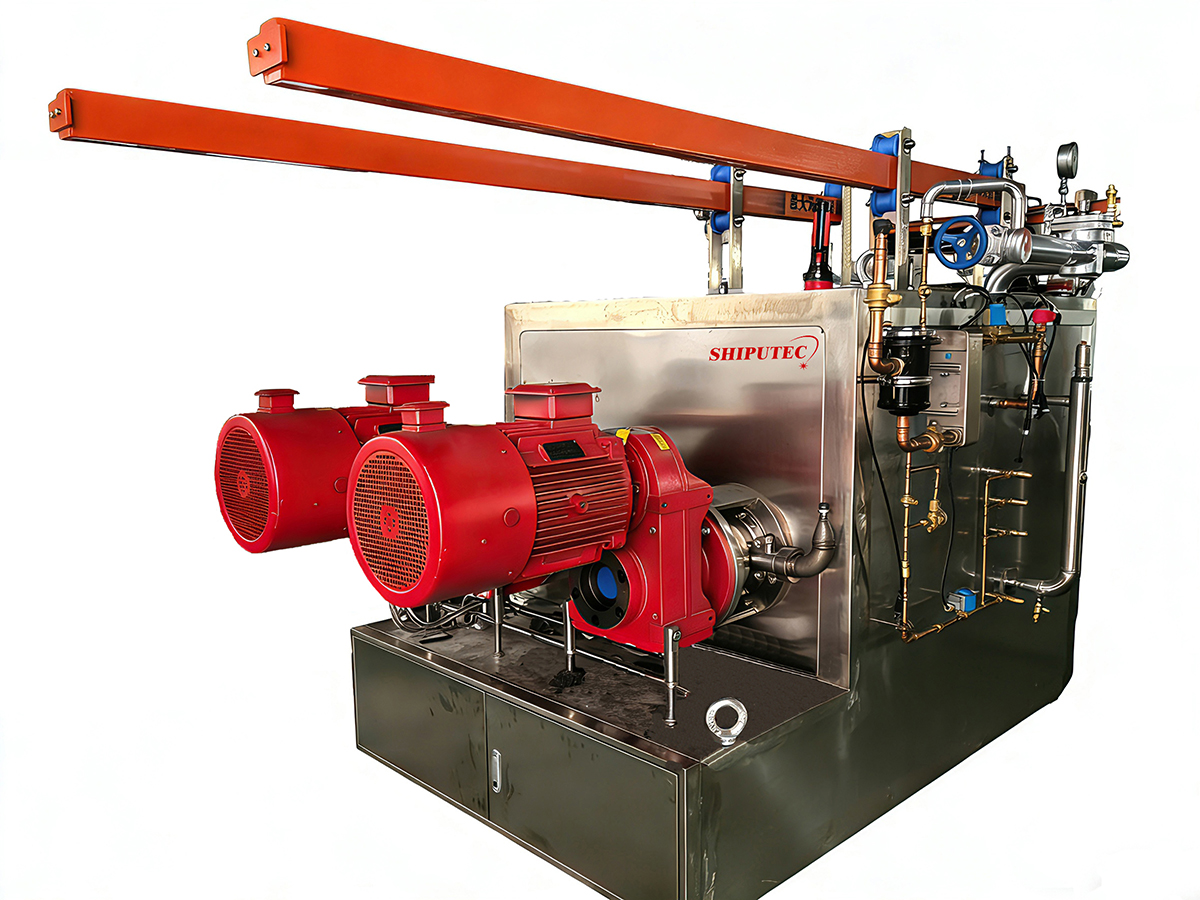

Super Votator
Function & Advantage of Super Votator
Equipment Description
This Super Votator is a kind of Scraped Surface Heat Exchanger, which is designed on base of technology of Perfector/Combinator, it can be used to heat and cool products of various viscosities, especially suitable for extremely viscous and viscous products, like butter, margarine, shortening and other sauce materials.
Technical Specification
|
Item |
Technical Parameter |
||
|
Model |
SPSV-2 |
SPSV-4 |
SPSV-6 |
|
Number of Cooling Cylinder |
2 |
4 |
6 |
|
Puff pastry margarine capacity (@-25c) |
1,000kg/h |
2,000kg/h |
3,000kg/h |
|
Table margarine capacity (@-25c) |
2,000kg/h |
4,000kg/h |
6,000kg/h |
|
Shortening (@-25c) |
5,000kg/h |
10,000kg/h |
15,000kg/h |
|
Dimension of cooling cylinder |
Dia.180*1600L mm |
Dia.180*1600L mm |
Dia.180*1600L mm |
|
Number of scraper |
4 rows |
4 rows |
4 rows |
|
Annular space |
2-10mm |
2-10mm |
2-10mm |
|
Cylinder volume |
10.5L*2 |
10.5L*4 |
10.5L*6 |
|
Designed pressure |
120 bar |
120 bar |
120 bar |
|
Working pressure |
100 bar |
100 bar |
100 bar |
|
Jacket pressure |
20-30 bar |
20-30 bar |
20-30 bar |
|
Heat exchange area |
0.91 sqm |
0.91 sqm |
0.91 sqm |
|
Required cooling capacity |
|||
|
Independent cooling circulation |
Customized |
Customized |
Customized |
|
Coolant |
R404A/R507 |
R404A/R507 |
R404A/R507 |
|
Motor (SEW or Siemens) |
22kw+22kw |
22kw+22kw+45kw+45kw |
22kw+22kw+37kw+37kw+45kw+45kw |
|
Frequency inverter |
Danfoss |
Danfoss |
Danfoss |
|
Electric components |
Schneider |
Schneider |
Schneider |
|
Material inlet |
DN50 |
DN50 |
DN50 |
|
Material outlet |
DN50 |
DN50 |
DN50 |
|
Coolant inlet |
22mm |
22mm |
22mm |
|
Coolant outlet |
63mm |
63mm |
63mm |
|
PT100 |
2 |
4 |
6 |
|
Hot water system |
included |
included |
included |
|
Power of hot water system |
10kw |
20kw |
30kw |
