Scraped Surface Heat Exchanger Model SPV China Supplier

Short Description:

SPV series Scraped surface heat exchanger is particularly suited for continuous heating and cooling of viscous, sticky, heat-sensitive and particulate food products. It can operate with a wide range of media products. It is used in continuous processes such as heating, aseptic cooling, cryogenic cooling, crystallization, disinfection, pasteurization and gelation.

Suitable for margarine prodution, margarine making machine, margarine machine, shortening prodution line, shortening processing, vegetable ghee making, scraped surface heat exchanger, votator and ect.

Model: SPV

Brand: SP

Send email to us

Product Detail

Product Tags

China Scraped Surface Heat Exchanger & Votator Manufacturer and Supplier.Our company has China Scraped Surface Heat Exchanger & Votator on sale, welcome to contact us.

Applications of Scraped Surface Heat Exchangers

The equipment can be integrated into complete processing systems, including margarine making machines, margarine production lines, shortening production lines and Votator systems. With advanced scraping technology and reliable heat transfer performance, the SPX series helps manufacturers achieve consistent product texture, improved production efficiency and stable product quality.

As an experienced SSHE manufacturer, Shipu provides customized solutions for margarine, butter, shortening, dairy, chocolate and sauce production, meeting different capacity and process requirements worldwide.

Working Principle of Scraped Surface Heat Exchangers

The product is pumped into the lower end of the heat exchanger cylinder. As the product flows through the cylinder, it is continuously agitated and removed from the cylinder wall by the scraping blades. The scraping action results in a surface free from fouling deposits and a uniform, high heat transfer rate.

The media flows in counter current direction in the annular space between the heat transfer cylinder and the insulated jacket. A spiral coil provides a higher heat transfer efficiency for steam and liquid media.

Rotor driving is achieved by an electric motor installed on the upper shaft end. Rotor speed and product flow can be varied to suit the application.

SPX series scraped-surface heat exchangers can be connected in series for in line heating and cooling.

Standard Design of Scraped Surface Heat Exchangers

SPV series Scraped-surface heat exchanger utilities a modular design for vertical mounting on a wall or column and includes:

Compact structure design
Solid shaft connection (60mm) structure
Durable blade material and technology
High precision machining technology
Solid heat transfer tube material and inner hole processing
The heat transfer tube can be disassembled and replaced separately
Gear motor drive - no couplings, belts or sheaves
Concentric or eccentric shaft mounting
GMP, 3A and ASME design standard; FDA optional

Working temperature : -30°C~ 200°C

Maximum working pressure
Material side : 3MPa (430psig), optional 6MPa (870psig)
Media side : 1.6 MPa (230psig),optional 4MPa (580 psig)

Cylinder
The inner cylinder diameter are 152 mm and 180mm

Capacity
The maximum flow rate is application specific and determined by the temperature program, the product properties and type of duty

Material
The heating surface is normally made of stainless steel, (SUS 316L), honed to a very high finish on the inner surface. For special applications different types of chrome coatings are available for the heating surface. The scraping blades are available in stainless steel and different types of plastic materials including a metal detectable type. The blade material and configuration is selected based on the application. Gaskets and O-rings are made of Viton, nitrile or Teflon. Suitable material will be selected for each application. Single seals, flushed (aseptic) seals are available, with material selection depending on the application

Optional Equipment

Drive motors of different types and different power configurations, also in explosion - proof design
The standard heat transfer tube material is carbon steel chrome-plated,316L stainless steel , 2205 duplex stainless steel , pure nickel are optional
Optional Shaft diameters(mm)：160, 150, 140, 130, 120, 110, 100
Optional the products flow from the center of the shaft
Optional high torque SUS630 stainless steel transmission spline shaft
Optional High Pressure mechanical seal up to 8MPa (1160psi)
Optional Water tempered shaft
The standard type is horizontal installation, and vertical installation is optional
Optional Eccentric shaft

Scraped Surface Heat Exchanger Model SPX China Supplier 4

Technical Specification

Model	Heat Exchanger Surface Area	Annular Space	Tube Length	Scraper Qty	Dimension	Power	Max. Pressure	Main Shaft Speed
Unit	M2	mm	mm	pc	mm	kw	Mpa	rpm
SPV18-220	1.24	10-40	2200	16	33505601325	15 or 18.5	3 or 6	0-358
SPV18-200	1.13	10-40	2000	16	31505601325	11 or 15	3 or 6	0-358
SPV18-180	1	10-40	1800	16	29505601325	7.5 or 11	3 or 6	0-340
SPV15-220	1.1	11-26	2200	16	33505601325	15 or 18.5	3 or 6	0-358
SPV15-200	1	11-26	2000	16	31505601325	11 or 15	3 or 6	0-358
SPV15-180	0.84	11-26	1800	16	29505601325	7.5 or 11	3 or 6	0-340
SPV18-160	0.7	11-26	1600	12	27505601325	5.5 or 7.5	3 or 6	0-340
SPV15-140	0.5	11-26	1400	10	25505601325	5.5 or 7.5	3 or 6	0-340
SPV15-120	0.4	11-26	1200	8	23505601325	5.5 or 7.5	3 or 6	0-340
SPV15-100	0.3	11-26	1000	8	21505601325	5.5	3 or 6	0-340
SPV15-80	0.2	11-26	800	4	19505601325	4	3 or 6	0-340
SPV-Lab	0.08	7-10	400	2	1280200300	3	3 or 6	0-1000
SPT-Max	4.5	50	1500	48	150012002450	15	2	0-200
Note: High Pressure model can provide pressure environment up to 8MPa（1160PSI）with a motor power of 22KW（30HP）

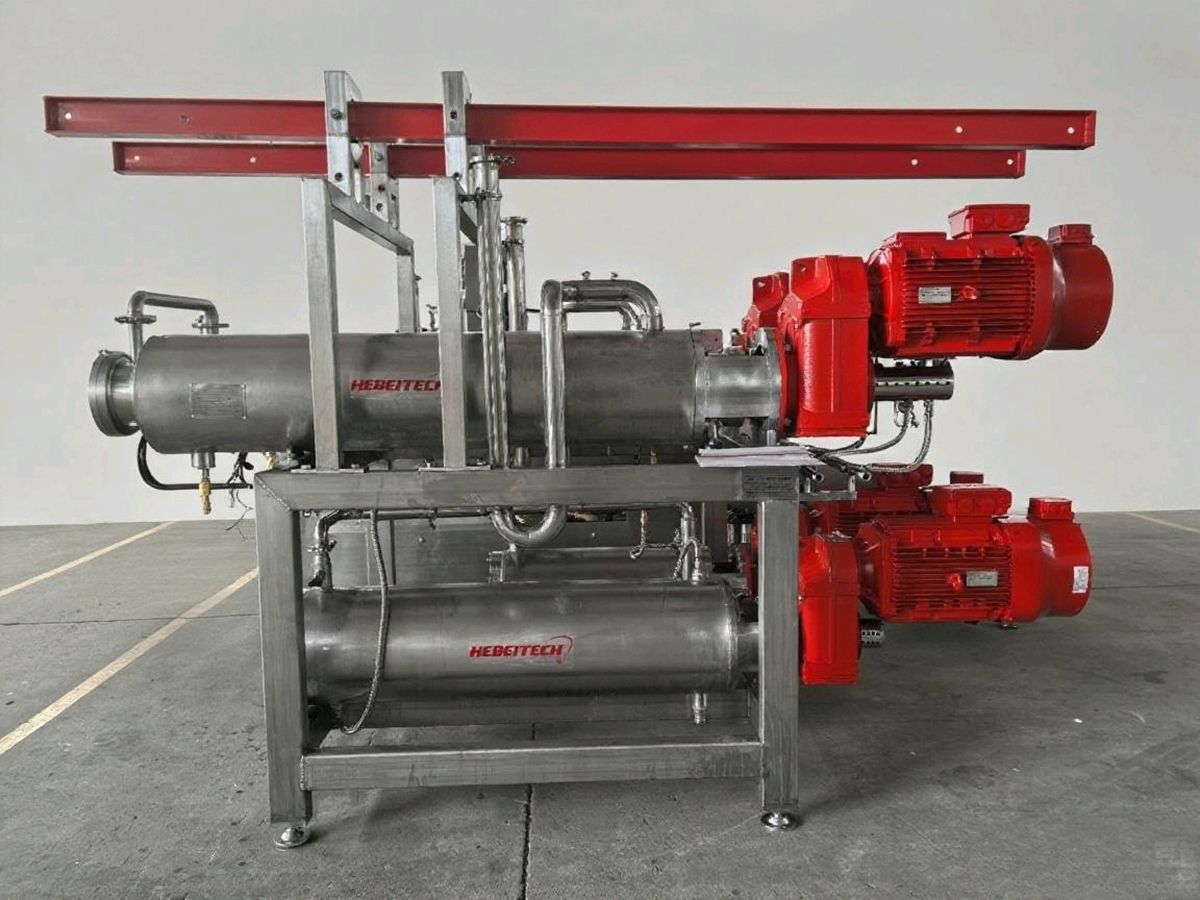

Scraped Surface Heat Exchangers Equipment Picture

Scraped Surface Heat Exchanger Model SPX China Supplier 5

Scraped Surface Heat Exchanger Model SPX China Supplier 7

Equipment Drawing

Site Commissioning

Choose Shipu as Your Scraped Surface Heat Exchanger Manufacturer

Choosing the right scraped surface heat exchanger manufacturer is essential for achieving stable heat transfer performance, consistent product quality and long-term production reliability.

With years of experience in food processing equipment manufacturing, Shipu specializes in the design and production of scraped surface heat exchangers (SSHE), Votator systems and complete dairy and fat processing solutions. We provide customized equipment solutions for manufacturers in the dairy, margarine, shortening, bakery and food industries.

20+ Years of Experience in Scraped Surface Heat Exchanger Technology

Shipu has been focusing on scraped surface heat exchanger technology for more than 20 years, continuously improving equipment design based on European and American SSHE technology.

Our experience covers various high-viscosity and heat-sensitive products, including:

Margarine
Butter
Shortening
Ghee
Cream
Chocolate
Sauces
Other viscous food products

This industry-focused experience allows us to understand different processing challenges and provide reliable thermal processing solutions.

Professional SSHE Design and Manufacturing Capability

Unlike general equipment suppliers, Shipu focuses on scraped surface heat exchanger systems and related food processing equipment.

Our engineering team provides complete support from:

Process design
Equipment selection
Mechanical design
Manufacturing
Installation guidance
After-sales service

The SPX series adopts a modular design with options for different blade configurations, heat transfer areas and equipment sizes to meet various production requirements.

Customized Solutions for Different Production Requirements

Every food production process has different requirements regarding:

Product viscosity
Processing temperature
Production capacity
Crystallization characteristics
Cleaning requirements

Shipu provides customized scraped surface heat exchanger solutions according to your actual production conditions.

Customization options include:

Heat transfer area
Cylinder configuration
Scraper material
Shaft design
Motor power
Sealing system
Processing capacity

This ensures the equipment can achieve optimal performance in different production environments.

Complete Food Processing Solution Provider

Shipu is not only a scraped surface heat exchanger manufacturer but also provides complete solutions for dairy and fat processing industries.

Our product range includes:

Scraped Surface Heat Exchanger
Votator
Super Votator
Pin Rotor Machine
Margarine Production Line
Shortening Production Line
Margarine Packaging Equipment

This integrated capability enables us to provide customers with complete production solutions instead of only supplying individual machines.

Reliable Quality Control and Food-Grade Design

For food processing applications, equipment hygiene and reliability are critical.

Shipu designs scraped surface heat exchangers according to food industry requirements, using food-grade stainless steel materials and precision manufacturing processes.

Key design features include:

SUS316L heat transfer surface
High precision machining
Durable scraper system
Easy maintenance structure
Hygienic processing design

The SPX series supports GMP, 3A and ASME design standards, with FDA-compliant material options available for specific applications.

Global Experience and Trusted by International Customers

Shipu has supplied food processing equipment to customers worldwide and established long-term cooperation with international companies in the dairy and food industries.

Our equipment has been applied by customers including:

Fonterra
Lactalis
Puratos
Unilever
Wilmar Kerry

With overseas service partners and technical support networks, Shipu helps customers achieve smoother equipment installation and operation.

Cost-Effective Alternative to European SSHE Manufacturers

Compared with traditional European scraped surface heat exchanger suppliers, Shipu provides competitive pricing while maintaining reliable performance and customization capability.

By combining professional manufacturing experience, efficient production processes and localized engineering support, Shipu helps customers reduce equipment investment costs while improving production efficiency.
