Semi-Auto Block Margarine Packaging Machine

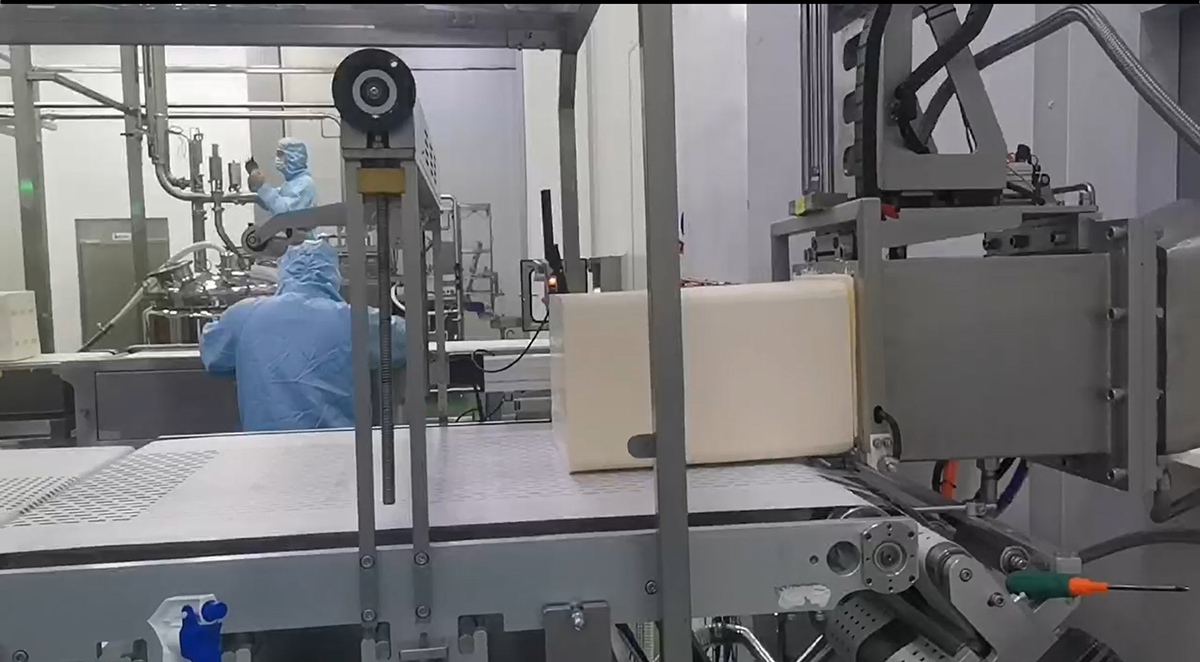

Equipment Photo
Semi-Auto Block Margarine Packaging Machine Description
This semi-auto block/sheet margarine packaging machine is specially designed to match low capacity of margarine production line. The machine is easy to operate and cost is low.
The packaging unit includes the block cutting device, film feeding device and film folding table. When the block/sheet margarine come out from the resting tube, it will be cut according to set weight/length, then enter the belt conveyor, the roll film is fed and adsorbed on the surface of belt, and at the bottom of block margarine, the film will be cut when reach the set length, the block margarine will be transferred to the operation table, the operator shall fold the film manually, after that put the block margarine into cartons.
Capacity : 800-1000kg/h base on 10kg/block
Block length : 240mm≤L≤400mm
Block width : 240mm≤W≤320mm
Block height : 30mm≤H≤200mm
The cutting blade is heated by constant temperature to ensure that the temperature of the cutting tool is constant.
The blade adopts special material and coated with Teflon. Constant tension mechanism is adopted at both ends to ensure the quality cutting effect, and no scorching problem.
Fully covered by safety cover (left, top and right side, totally 3 sides).
Working Process of Semi Automatic Block Margarine Packaging Machine
The semi automatic block margarine packaging machine completes the packaging process through cutting, film feeding, conveying, and manual folding operations.
1. Block Margarine Cutting
- After the margarine block or sheet exits from the resting tube, the cutting device cuts the product according to the preset weight or length requirements, ensuring consistent product dimensions.
2. Film Feeding & Positioning
- The cut margarine blocks are transferred onto the belt conveyor. At the same time, the roll film is automatically fed and attached to the conveyor surface, preparing for the wrapping process.
3. Film Cutting & Product Transfer
- When the packaging film reaches the preset length, the cutting device cuts the film accurately. The wrapped margarine block is then transferred to the folding table for the next step.
4. Manual Film Folding
- The operator folds the film around the margarine block manually to complete the final wrapping process and ensure a neat package appearance.
5. Carton Packing
- After wrapping is completed, the finished margarine blocks are placed into cartons for storage, transportation, or further packaging processes.
Key Features of Semi Automatic Block Margarine Packaging Machine
Semi Automatic Packaging Operation
- The machine combines manual feeding with automatic wrapping, providing a practical packaging solution for block margarine and shortening products. It helps improve packaging efficiency while keeping the operation simple and reliable.
Neat Block Wrapping Performance
- Designed for block-shaped products, the machine completes paper feeding, folding, and wrapping processes to achieve a clean package appearance and consistent wrapping quality.
Suitable for Various Edible Fat Products
- The machine is mainly used for packaging block margarine, butter, shortening, and other solid fat products widely used in bakery and food industries.
Oil Paper Wrapping Solution
- The machine is suitable for food-grade packaging materials such as oil paper, helping protect products during storage and transportation while maintaining a professional package appearance.
Compact Design & Easy Operation
- With a simple structure and user-friendly operation, the machine is easy to install, operate, and maintain, making it suitable for different production environments.
Flexible Configuration Options
- The machine can be customized according to different product sizes, packaging requirements, and production conditions to provide a suitable packaging solution for customers.
Site Commissioning
Applications of Semi Automatic Block Margarine Packaging Machine
The semi automatic block margarine packaging machine is widely used in food processing industries that require reliable and hygienic packaging solutions for block-shaped edible fat products. It is suitable for margarine manufacturers, bakery ingredient suppliers, and food processing companies looking for stable and flexible packaging equipment.
| Product | Application |
| Block Margarine | Commercial margarine blocks packaging |
| Butter Blocks | Wrapping butter products for food industry |
| Shortening | Packaging vegetable shortening blocks |
| Puff Pastry Margarine | Bakery ingredient packaging |
| Edible Fats | Industrial food fat packaging |
Margarine Manufacturing Industry
Margarine manufacturers usually require continuous packaging solutions for block products with consistent weight, neat appearance, and reliable protection during storage and transportation.
Packaging Challenges
- Maintaining uniform package size
- Reducing manual wrapping errors
- Improving packaging efficiency for large batch production
Our Solution
The semi automatic block margarine packaging machine provides stable cutting, film feeding, and wrapping processes to ensure consistent packaging quality while reducing manual operation requirements.
Bakery Ingredient Industry
Bakery ingredient suppliers produce large quantities of margarine and shortening blocks for bakeries, pastry manufacturers, and food service companies. Product packaging needs to be clean, efficient, and suitable for long-distance transportation.
Packaging Challenges
- Protecting products from contamination
- Ensuring neat packaging for commercial distribution
- Handling different product sizes and packaging requirements
Our Solution
The machine supports oil paper and food-grade wrapping materials, providing a practical packaging solution for bakery margarine, shortening, and other solid fat ingredients.
Shortening Production Industry
Shortening manufacturers need reliable packaging equipment for solid vegetable fats used in baking, frying, and food processing applications.
Packaging Challenges
- Stable wrapping for high-volume production
- Maintaining product appearance
- Reducing dependence on manual packaging
Our Solution
With automatic film feeding and controlled wrapping processes, the machine helps shortening producers achieve efficient and consistent block packaging.
Dairy and Butter Processing Industry
Butter and dairy product manufacturers require hygienic packaging methods to maintain product quality and extend shelf life.
Packaging Challenges
- Food safety requirements
- Clean packaging appearance
- Protection during storage and transportation
Our Solution
The machine is compatible with food-grade packaging materials and provides a clean wrapping process suitable for butter blocks and similar dairy products.
Food Ingredient Processing Plants
Food ingredient manufacturers often need flexible packaging equipment that can handle different product specifications and production conditions.
Packaging Challenges
- Different block dimensions
- Flexible production requirements
- Limited automation investment
Our Solution
The semi automatic design provides a cost-effective packaging solution with easy operation, flexible adjustment, and convenient maintenance for various food processing environments.
Choose Us as Your Margarine Packaging Machine Manufacturer
Sino-Votator is a professional food processing machinery manufacturer specializing in margarine, shortening, butter, and edible fat processing solutions. With years of experience in food machinery manufacturing, we provide reliable packaging equipment and customized solutions for customers worldwide.
Professional Experience in Edible Fat Processing Equipment
- With extensive experience in margarine and shortening production equipment, Sino-Votator understands the specific requirements of the edible fat industry and provides suitable packaging solutions for different production needs.
Complete Manufacturing & Engineering Capability
- From equipment design and manufacturing to assembly and testing, we control every stage of production to ensure stable machine performance, reliable quality, and long service life.
Customized Packaging Solutions
- Different customers have different product sizes, packaging materials, and production requirements. Our engineering team provides customized solutions based on product specifications, production capacity, and factory layout.
Global Export Experience & Technical Support
- Sino-Votator has supplied food processing equipment to customers worldwide and provides professional technical support, installation guidance, and after-sales service to ensure smooth operation.
Integrated Food Processing Solutions
- Besides margarine packaging machines, Sino-Votator also provides complete solutions including margarine production lines, shortening processing equipment, and related food machinery, helping customers build efficient production systems.
